STW77N65M5 N-Channel MOSFET

STW77N65M5 Description

Isc N-Channel MOSFET Transistor *.

STW77N65M5 Features

* With TO-247 package
* Low input capacitance and gate charge
* Low gate input resistance
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW77N65M5 Applications

* Switching applications INCHANGE Semiconductor STW77N65M5
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±25 69 41.5 276 PD Total Dissipat

📥 Download Datasheet

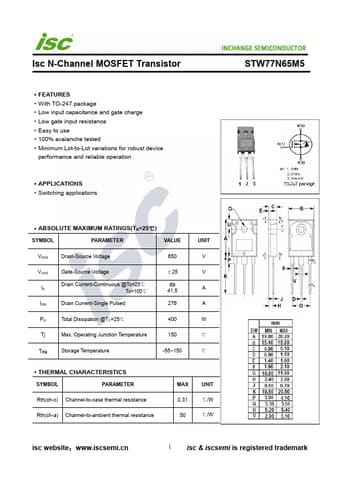

Preview of STW77N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW77N65M5
Manufacturer
INCHANGE
File Size
208.07 KB
Datasheet
STW77N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
