STW5210 103 dB SNR audio DAC

STW5210 Description

STw5210 24-bit, 103 dB SNR audio DAC with playback time extender Data Brief .
The STw5210 is a 24-bit high performance DAC for mobile handset application with 103 dB dynamic range for the whole audio path.

STW5210 Features

* DAC www. DataSheet4U. com
* 24-bit
* audio DAC 103 dB dynamic range for the full audio path THD -66 dB (0.0 5%) on 32 Ω Sampling rate: 8 kHz to 48 kHz Operating mode selection: PTE™ playback time extender or standard (continuous) m

STW5210 Applications

* NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions

📥 Download Datasheet

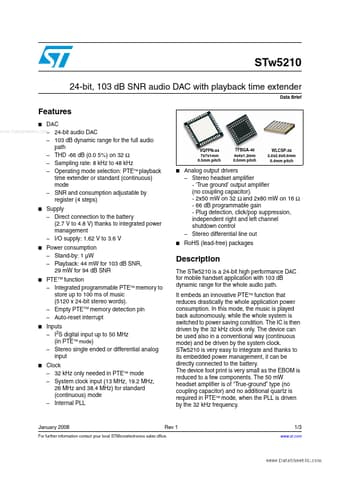

Preview of STW5210 PDF
datasheet Preview Page 2 datasheet Preview Page 3
