STW50N65DM2AG - N-Channel MOSFET

Description

This high-voltage N-channel Power MOSFET is part of the MDmesh DM2 fastrecovery diode series.

Features

  • Order code STW50N65DM2AG VDS 650 V RDS(on) max. 87 mΩ ID 38 A 3 2 1 TO-247 D(2, TAB).
  • AEC-Q101 qualified.
  • Fast-recovery body diode.
  • Extremely low gate charge and input capacitance.
  • Low on-resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.
  • Zener-protected.

📥 Download Datasheet

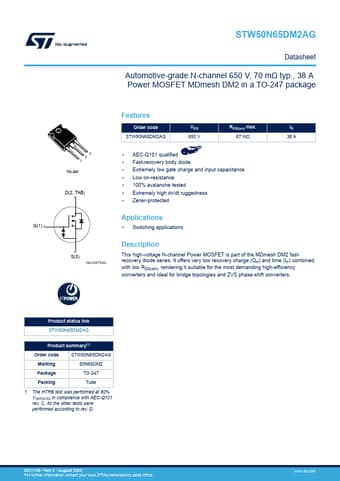

Datasheet preview – STW50N65DM2AG

📁 Similar Datasheet

  • STW50N10 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STW50NB20 - N - CHANNEL 200V - 0.047ohm - 50A - TO-247 PowerMESH MOSFET (ST Microelectronics)
  • STW5093 - 2.7V SUPPLY 14-BIT LINEAR CODEC WITH HIGH-PERFORMANCE AUDIO FRONT-END (ST Microelectronics)
  • STW5094 - 18 BIT 8kHz TO 48kHz LOW POWER STEREO AUDIO DAC (ST Microelectronics)
  • STW5095 - Low Power Asynchronous Stereo Audio Codec with Integrated Power Amplifiers (ST Microelectronics)
  • STW51000 - SUPER INTEGRATED DSP ENGINE (ST Microelectronics)
  • STW52NK25Z - N-Channel MOSFET (ST Microelectronics)
  • STW52NK30Z - N-CHANNEL MOSFET (ST Microelectronics)
  • STW54NM65ND - N-Channel MOSFET (INCHANGE)
  • STW55NE10 - N-CHANNEL MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STW50N65DM2AG Datasheet Automotive-grade N-channel 650 V, 70 mΩ typ., 38 A Power MOSFET MDmesh DM2 in a TO-247 package Features Order code STW50N65DM2AG VDS 650 V RDS(on) max. 87 mΩ ID 38 A 3 2 1 TO-247 D(2, TAB) • AEC-Q101 qualified • Fast-recovery body diode • Extremely low gate charge and input capacitance • Low on-resistance • 100% avalanche tested • Extremely high dv/dt ruggedness • Zener-protected Applications G(1) • Switching applications S(3) NG1D2TS3Z Description This high-voltage N-channel Power MOSFET is part of the MDmesh DM2 fastrecovery diode series.
