STW4811M Power management

STW4811M Description

STw4811M STw4811N Power management for multimedia processors .
STw4811 is a power management companion chip for multimedia processors used in portable applications.

STW4811M Features

* 2 step-down converters
* 1 to 1.45 V with 15 steps at 700 mA
* 1.8 V at 600 mA for general purpose usage
* 3 low-drop output regulators for different uses
* PLL analog supplies: 1.05 V, 1.2 V, 1.3 V 1.8 V - 10 mA
* Processor analog functions: 2.5 V - 10 mA

STW4811M Applications

* ST NomadikTM STn881x
* Multimedia processor

📥 Download Datasheet

Preview of STW4811M PDF

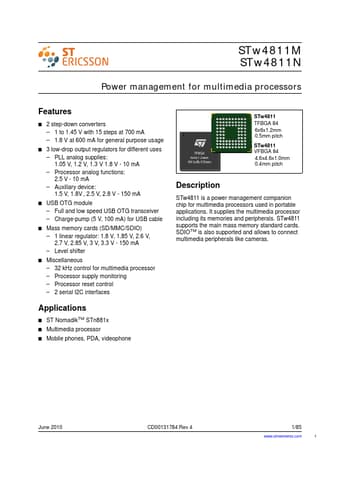

datasheet Preview Page 2 datasheet Preview Page 3
