STW48NM60N N-Channel MOSFET

STW48NM60N Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STW48NM60N *.

STW48NM60N Features

* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW48NM60N Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±25 44 28 176 PD Total Dissipation 330 Tch Max. Operating Junction

📥 Download Datasheet

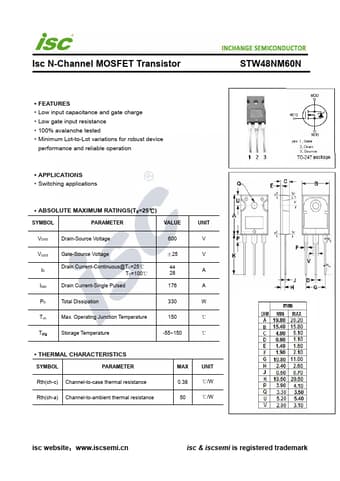

Preview of STW48NM60N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW48NM60N
Manufacturer
INCHANGE
File Size
208.00 KB
Datasheet
STW48NM60N-INCHANGE.pdf
Description
N-Channel MOSFET
