STV83X7 - TV sound processor

STMicroelectronics

📥 Download Datasheet

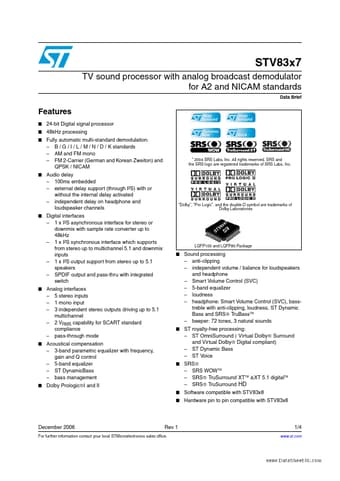

STV83X7 Datasheet Preview — Preview of STV83X7 PDF

Datasheet Details

Part number	STV83X7
Manufacturer	STMicroelectronics
File Size	100.79 KB
Description	TV sound processor
Datasheet	STV83X7_STMicroelectronics.pdf

STV83X7 Product details

Description

STV83x7 Description STV83xy family is the latest sound processor from STMicroelectronics.Based on STV82xy family success, the new STV83x8(US) and STV83x7 (EU/Asia/Middle East/Africa) are particularly intended for the mainstream flat TV market, paving the way to enhanced sound experience at the end customer level.One of the new STV83xy family key function is to ensure the proper demodulation of analog broadcast thanks to its “Autostandard” functionality, a digital standard search engine.The

Features

24-bit Digital signal processor 48kHz processing Fully automatic multi-standard demodulation:.
B / G / I / L / M / N / D / K standards.
AM and FM mono.
FM 2-Carrier (German and Korean Zweiton) and QPSK / NICAM Audio delay.
100ms embedded.
external delay support (through I²S) with or without the internal delay activated.
independent delay on headphone and loudspeaker channels Digital interfaces.
1 x I²S asynchronous.
