STV8102 - 128 x 64 OLED passive matrix controller/driver

STMicroelectronics

📥 Download Datasheet

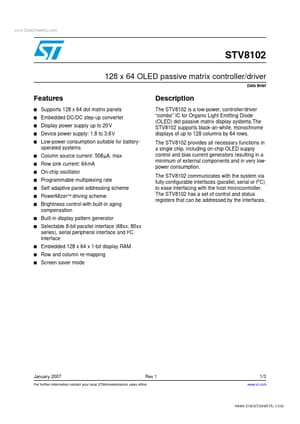

STV8102 Datasheet Preview — Preview of STV8102 PDF

Datasheet Details

Part number: STV8102
Manufacturer: STMicroelectronics ↗
File Size: 73.78 KB
Datasheet: STV8102_STMicroelectronics.pdf
Description: 128 x 64 OLED passive matrix controller/driver

STV8102 Product details

Description

The STV8102 is a low-power, controller/driver “combo” IC for Organic Light Emitting Diode (OLED) dot passive matrix display systems.The STV8102 supports black-an-white, monochrome displays of up to 128 columns by 64 rows..

Features

Features PowerMizerTM automatic adjustment of VPP Embedded DC/DC converter on chip oscillator Self adaptive scanning Benefits Reduce power consumption Reduce system components Reduce power consomption Figure 1. Functional block diagram I2 C interface Parallel interface SPI interface Status register Row drivers Instruction decoder Control register Clock generators PowermizerTM panel supply Display RAM 64 x 128 bits Screen saver Pattern generator Self-adaptive scanning control Column d.
