STULPI01A - High speed USB On-The-Go ULPI transceiver

STMicroelectronics

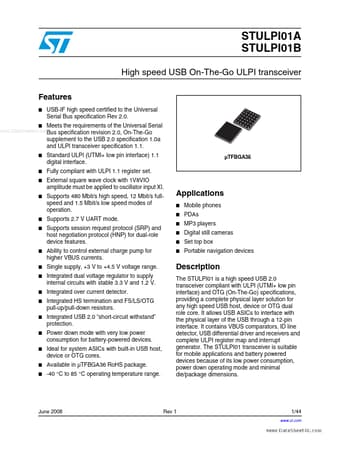

STULPI01A Datasheet Preview — Preview of STULPI01A PDF

Datasheet Details

Part number	STULPI01A
Manufacturer	STMicroelectronics ↗
File Size	666.11 KB
Description	High speed USB On-The-Go ULPI transceiver
Datasheet	STULPI01A_STMicroelectronics.pdf

STULPI01A Product details

Description

The STULPI01 is a high speed USB 2.0 transceiver compliant with ULPI (UTMI+ low pin interface) and OTG (On-The-Go) specifications, providing a complete physical layer solution for any high speed USB host, device or OTG dual role core.

Features

USB-IF high speed certified to the Universal Serial Bus specification Rev 2.0.
Meets the requirements of the Universal Serial www. DataSheet4U. com Bus specification revision 2.0, On-The-Go supplement to the USB 2.0 specification 1.0a and ULPI transceiver specification 1.1.
Standard ULPI (UTMI+ low pin interface) 1.1 digital interface. Fully compliant with ULPI 1.1 register set. External square wave clock with 1V8VIO amplitude must be applied to oscillator i.
