STULED602 - N-channel Power MOSFET

STMicroelectronics

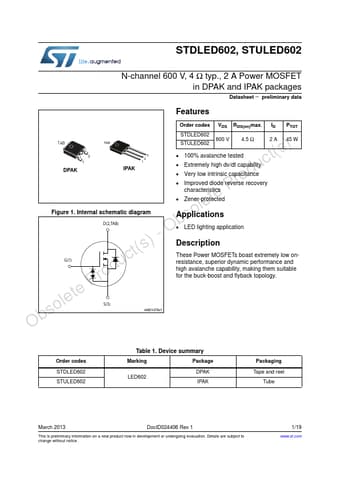

STULED602 Datasheet Preview — Preview of STULED602 PDF

Datasheet Details

Part number	STULED602
Manufacturer	STMicroelectronics ↗
File Size	738.94 KB
Description	N-channel Power MOSFET
Datasheet	STULED602-STMicroelectronics.pdf

STULED602 Product details

Description

These Power MOSFETs boast extremely low onresistance, superior dynamic performance and high avalanche capability, making them suitable for the buck-boost and flyback topology.

Features

Order codes VDS RDS(on)max. ID PTOT STDLED602 TAB TAB t(s)3 1 ucDPAK IPAK 3 2 1 olete ProdFigure 1. Internal schematic diagram bsD(2,TAB) roduct(s) - OG(1) 600 V STULED602 4.5 Ω 2 A 45 W.
100% avalanche tested.
Extremely high dv/dt capability.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
Zener-protected.
