STU6N65K3 N-channel Power MOSFET

STU6N65K3 Description

STF6N65K3, STFI6N65K3, STU6N65K3 N-channel 650 V, 1.1 Ω typ., 5.4 A SuperMESH3™ Power MOSFET in TO-220FP, I²PAKFP, IPAK Datasheet * productio.
These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized ver.

STU6N65K3 Features

* Order codes VDSS RDS(on) max. STF6N65K3 STFI6N65K3 650 V < 1.3 Ω STU6N65K3 ID 5.4 A Ptot 30 W 110 W
* 100% avalanche tested
* Extremely high dv/dt capability
* Gate charge minimized
* Very low intrinsic capacitance
* Improved diode reverse recovery characteristics
* Zener

📥 Download Datasheet

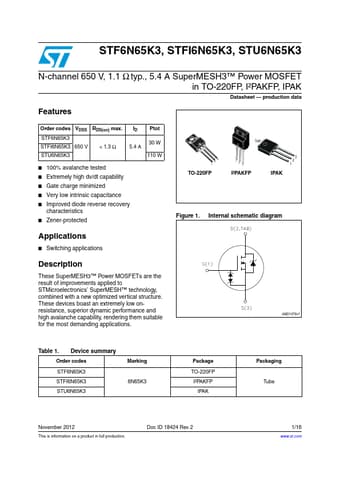

Preview of STU6N65K3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
