STTH60RQ06 ultrafast high voltage rectifier

STTH60RQ06 Description

STTH60RQ06 Datasheet 600 V, 60 A ultrafast high voltage rectifier K A K K A K DO-247 A K DO-247 LL .
The STTH60RQ06 has been developed for applications requiring a high-voltage (HV) capability such as in secondary rectification in HV LLC full bridge t.

STTH60RQ06 Features

* High junction temperature capability
* Ultrafast with soft recovery behavior
* Low reverse current
* Low thermal resistance
* Reduced switching and conduction losses

STTH60RQ06 Applications

* requiring a high-voltage (HV) capability such as in secondary rectification in HV LLC full bridge topology or in high voltage boost function. It is ideal for switching power supplies and industrial applications, as rectification function, or even freewheeling and clamping diode. Product status link

📥 Download Datasheet

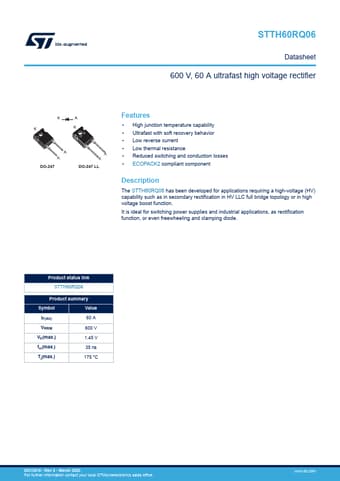

Preview of STTH60RQ06 PDF
datasheet Preview Page 2 datasheet Preview Page 3
