STTH6006TV, STTH6006CW Turbo 2 ultrafast - high voltage rectifier

STTH6006TV Description

STTH6006TV Turbo 2 ultrafast - high voltage rectifier Main product characteristics A1 K1 IF(AV) VRRM Tj VF (typ) trr (max) 2 x 30 A 600 V 150° C .
The STTH6006TV1 uses ST Turbo2 600V technology.

STTH6006TV Features

* Ultrafast switching
* Low reverse current
* Low thermal resistance
* Reduces conduction and switching losses
* Insulated voltage: 2500 VRMS

STTH6006TV Applications

* such as rectification and PFC boost diode. Order codes Part Number STTH6006TV1 Marking STTH6006TV1 Table 1. Absolute ratings (limiting values per diode at 25° C, unless otherwise specified) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current IF(AV)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STTH6006TV, STTH6006CW. Please refer to the document for exact specifications by model.

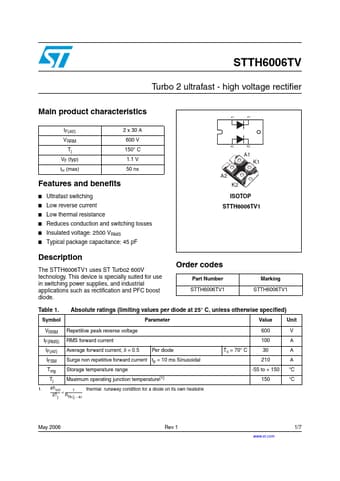

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STTH6006TV, STTH6006CW
Manufacturer
STMicroelectronics ↗
File Size
98.63 KB
Datasheet
STTH6006CW_STMicroelectronics.pdf
Description
Turbo 2 ultrafast - high voltage rectifier
Note
This datasheet PDF includes multiple part numbers: STTH6006TV, STTH6006CW.
Please refer to the document for exact specifications by model.
