STTH30W03C - Turbo 2 ultrafast high voltage rectifier

STMicroelectronics

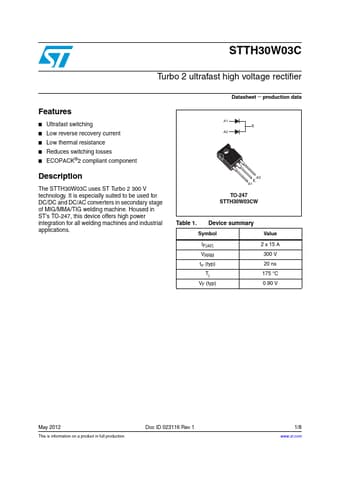

STTH30W03C Datasheet Preview — Preview of STTH30W03C PDF

Datasheet Details

Part number	STTH30W03C
Manufacturer	STMicroelectronics ↗
File Size	157.83 KB
Description	Turbo 2 ultrafast high voltage rectifier
Datasheet	STTH30W03C-STMicroelectronics.pdf

STTH30W03C Product details

Description

The STTH30W03C uses ST Turbo 2 300 V technology. production data A1 K A2 A2 K A1 TO-247 STTH30W03CW Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) Tj VF (typ) 2 x 15 A 300 V 20 ns 175 °C 0.90 V May 2012 This is information on

Features

Ultrafast switching.
Low reverse recovery current.
Low thermal resistance.
Reduces switching losses.
