STTH240F04 - Ultrafast high voltage rectifier

STTH240F04 Description

$ . $ . " , " , ,62723 Table 1.Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) trr (typ) 2 x 120 A 400 V 150 °C 0.90 V 70 .
The STTH240F04 uses ST’s 400 V planar technology.

STTH240F04 Features

* Ultrafast switching
* Low reverse current
* Low thermal resistance
* Reduces switching and conduction losses STTH240F04 Ultrafast high voltage rectifier Datasheet - production data
* Package insulation voltage:
* Terminal to case: 2500 VAC during 1

📥 Download Datasheet

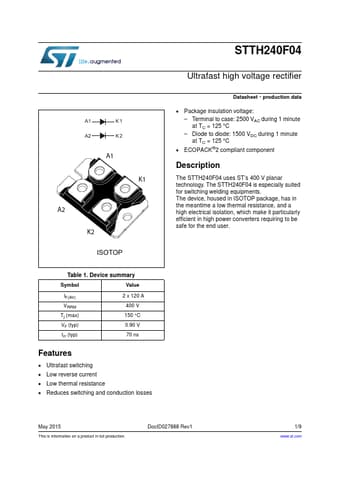

Preview of STTH240F04 PDF
