STTH2003CG, STTH2003 300V ultrafast rectifier

STTH2003CG Description

STTH2003 Datasheet 300 V ultrafast rectifier A1 K A2 K A2 A1 K TO-220AB K A2 K A1 TO-220FPAB A2 A1 K I2PAK K K A2 A1 D2PAK A2 A1 Product stat.
The STTH2003 is a dual center tap fast recovery epitaxial diodes suited for switch mode power supply and high frequency DC/DC converters.

STTH2003CG Features

* Combines highest recovery and reverse voltage performance
* Ultra-fast, soft and noise-free recovery
* Insulated package: TO-220FPAB
* Insulating voltage = 2000 VRMS sine

STTH2003CG Applications

* Secondary rectification
* Switching diode
* Telecom power supply

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STTH2003CG, STTH2003. Please refer to the document for exact specifications by model.

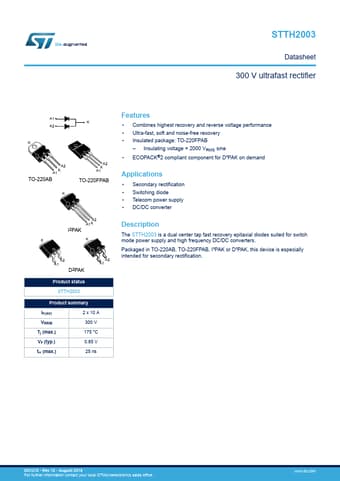

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STTH2003CG, STTH2003
Manufacturer
STMicroelectronics ↗
File Size
364.62 KB
Datasheet
STTH2003-STMicroelectronics.pdf
Description
300V ultrafast rectifier
Note
This datasheet PDF includes multiple part numbers: STTH2003CG, STTH2003.
Please refer to the document for exact specifications by model.
