STTH208-Y - Automotive high voltage ultrafast rectifier

Description

The STTH208-Y, which is using ST’s new 1000 V planar technology, is especially suited for switching mode base drive and transistor circuits.

The device is also intended for use as a free-wheeling diode in power supplies and other power switching applications in automotive K functions.

Features

  • SMB Flat Wettable leads.
  • AEC-Q101 qualified.
  • Very low conduction losses.
  • Negligible switching losses.
  • Low forward and reverse recovery times.
  • High junction temperature.
  • ECOPACK2 or ECOPACK3 compliant component on demand.

📥 Download Datasheet

📁 Similar Datasheet

  • STTH208 - ultrafast recovery diode (ST Microelectronics)
  • STTH208U - ultrafast recovery diode (ST Microelectronics)
  • STTH20002TV - TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER (ST Microelectronics)
  • STTH20003TV - Ultrafast high voltage rectifier (ST Microelectronics)
  • STTH20004TV1 - Ultrafast high voltage rectifier (ST Microelectronics)
  • STTH2002 - Ultrafast recovery diode (ST Microelectronics)
  • STTH2002C - HIGH EFFICIENCY ULTRAFAST DIODE (ST Microelectronics)
  • STTH2003 - 300V ultrafast rectifier (ST Microelectronics)
  • STTH2003CG - Ultrafast Rectifier (INCHANGE)
  • STTH2003CT - Hight frequency secondary rectifier (INCHANGE)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

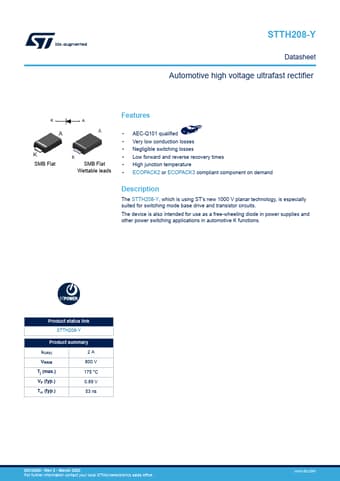

STTH208-Y Datasheet Automotive high voltage ultrafast rectifier SMB Flat Features SMB Flat Wettable leads • AEC-Q101 qualified • Very low conduction losses • Negligible switching losses • Low forward and reverse recovery times • High junction temperature • ECOPACK2 or ECOPACK3 compliant component on demand Description The STTH208-Y, which is using ST’s new 1000 V planar technology, is especially suited for switching mode base drive and transistor circuits. The device is also intended for use as a free-wheeling diode in power supplies and other power switching applications in automotive K functions. Product status link STTH208-Y Product summary IF(AV) 2A VRRM 800 V Tj (max.) 175 °C VF (typ.) 0.89 V Trr (typ.
