STTH120RQ06-M2Y - Automotive 600V ultrafast bridge module

STMicroelectronics

The STTH120RQ06-M2Y by STMicroelectronics is a Automotive 600V ultrafast bridge module. Below is the official datasheet preview.

📥 Download Datasheet

STTH120RQ06-M2Y Automotive 600V ultrafast bridge module by STMicroelectronics - Datasheet Preview — Official preview page of the **STTH120RQ06-M2Y** Automotive 600V ultrafast bridge module datasheet (STMicroelectronics).

Datasheet Details

Part number	STTH120RQ06-M2Y
Manufacturer	STMicroelectronics
File Size	545.06 KB
Description	Automotive 600V ultrafast bridge module
Datasheet	STTH120RQ06-M2Y-STMicroelectronics.pdf

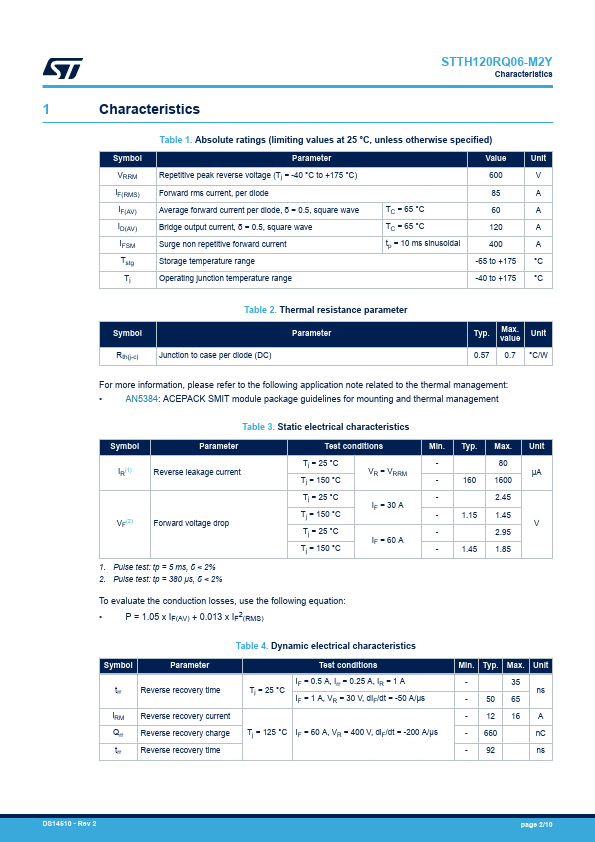

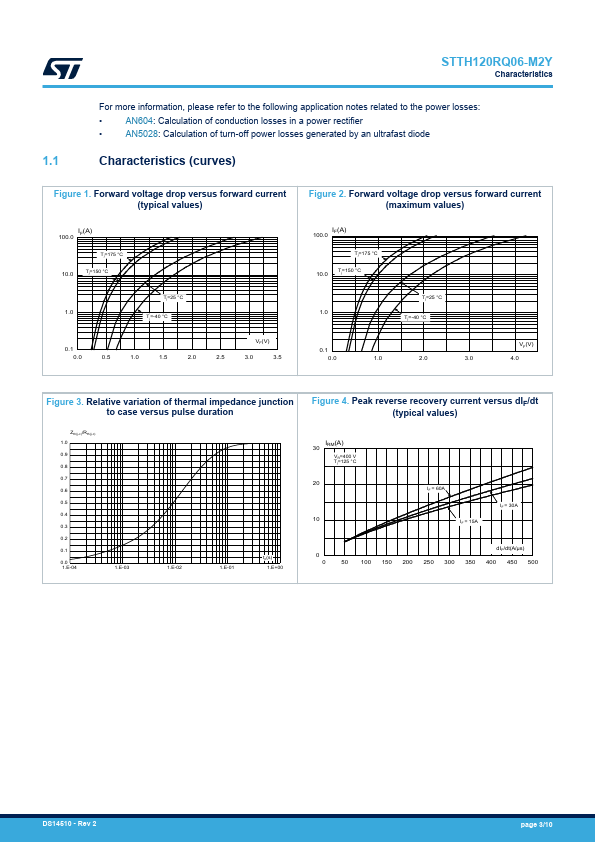

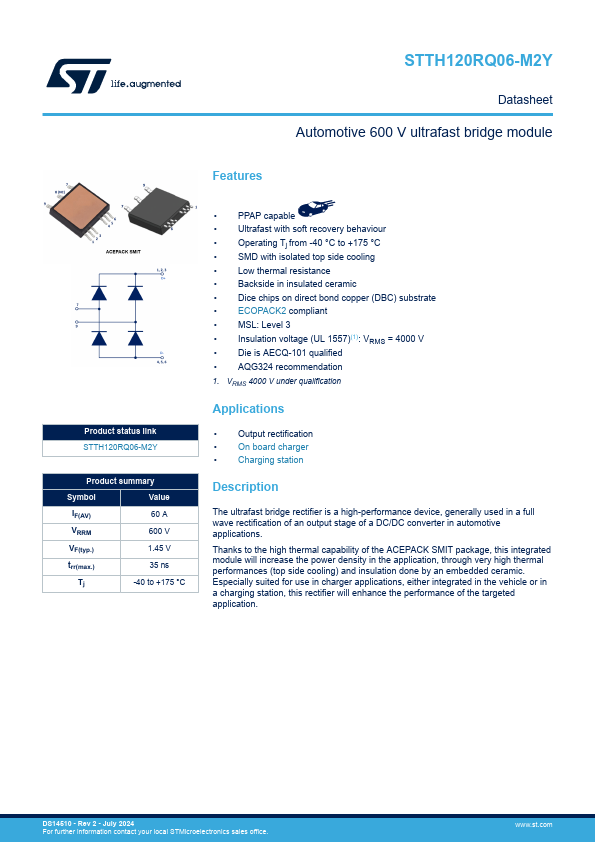

Additional preview pages of the STTH120RQ06-M2Y datasheet.

STTH120RQ06-M2Y Product details

Description

The ultrafast bridge rectifier is a high-performance device, generally used in a full wave rectification of an output stage of a DC/DC converter in automotive applications.

Features

Product status link STTH120RQ06-M2Y Product summary Symbol Value IF(AV) VRRM 60 A 600 V VF(typ. ) trr(max. ) 1.45 V 35 ns Tj -40 to +175 °C.
PPAP capable.
Ultrafast with soft recovery behaviour.
Operating Tj from -40 °C to +175 °C.
SMD with isolated top side cooling.
Low thermal resistance.
Backside in insulated ceramic.
Dice chips on direct bond copper (DBC) substrate.
ECOPACK2 compliant.
MSL: Leve.
