STTH12010TV - Ultrafast recovery - high voltage diode

STMicroelectronics

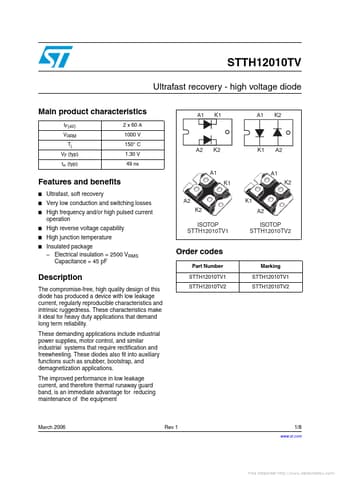

STTH12010TV Datasheet Preview — Preview of STTH12010TV PDF

Datasheet Details

Part number	STTH12010TV
Manufacturer	STMicroelectronics ↗
File Size	157.77 KB
Description	Ultrafast recovery - high voltage diode
Datasheet	STTH12010TV_STMicroelectronics.pdf

STTH12010TV Product details

Description

The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness.

Features

Ultrafast, soft recovery Very low conduction and switching losses High frequency and/or high pulsed current operation High reverse voltage capability High junction temperature Insulated package.
Electrical insulation = 2500 VRMS Capacitance = 45 pF A2 K2 ISOTOP STTH12010TV1 A2 ISOTOP STTH12010TV2 Order codes Part Number STTH12010TV1 STTH12010TV2 Marking STTH12010TV1 STTH12010TV2.
