STSPIN32F0 Advanced BLDC controller

STSPIN32F0 Description

STSPIN32F0 Advanced BLDC controller with embedded STM32 MCU .

STSPIN32F0 Features

* Extended operating voltage from 8 to 45 V
* Three-phase gate drivers
* 600 mA sink/source
* Integrated bootstrap diodes
* Cross-conduction prevention
* 32-bit ARM® Cortex®-M0 core:
* Up to 48 MHz clock frequency
* 4-kByte SRAM with HW parity

STSPIN32F0 Applications

* Kitchen robots
* Portable vacuum cleaners
* Hand dryers and air purifiers
* Drones and aero. modeling
* Power tools
* Industrial and educational robots
* Home appliance and air-con. fans March 2017 This is information on a product in full production. DocID029806 Rev 2

📥 Download Datasheet

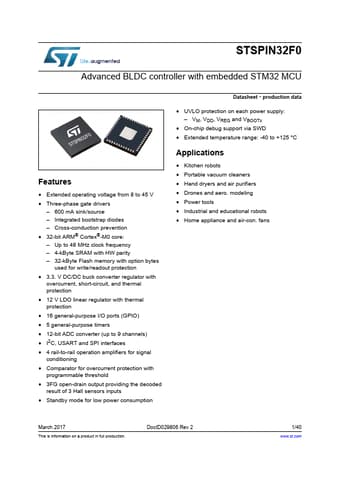

Preview of STSPIN32F0 PDF
datasheet Preview Page 2 datasheet Preview Page 3
