STS2DPF80 DUAL P-CHANNEL MOSFET

STS2DPF80 Description

STS2DPF80 DUAL P-CHANNEL 80V - 0.21 Ω - 2.3A SO-8 STripFET™ POWER MOSFET TYPE STS2DPF80 * * VDSS 80 V RDS(on) <0.25 Ω ID 2.3 A TYPICAL RDS.
This application specific Power MOSFET is the second generation of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS2DPF80 Applications

* DC/DC CONVERTERS
* BATTERY MANAGEMENT IN NOMADIC EQUIPMENT
* POWER MANAGEMENT IN CELLULAR PHONES AND DISPLAY NEW GENERATION SO-8 INTERNAL SCHEMATIC DIAGRAM www. DataSheet4U. com Ordering Information SALES TYPE STS8DPF80 MARKING S8DPF80 PACKAGE SO-8 PACKAGING TAPE & REEL ABSOLUTE MAX

📥 Download Datasheet

Preview of STS2DPF80 PDF

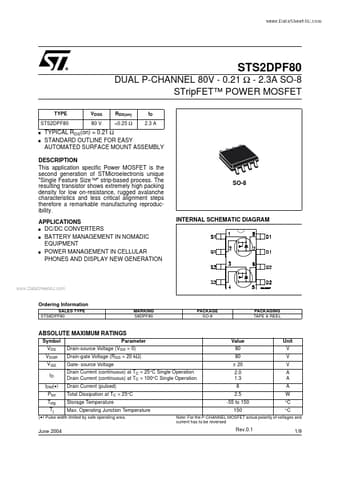

datasheet Preview Page 2 datasheet Preview Page 3
