STRHMF16N20 N-channel Power MOSFET

STRHMF16N20 Description

STRHMF16N20 Datasheet Rad-Hard 200 V, 16 A, N-channel Power MOSFET 2 1 3 SMD.5 D(3) G(1) S(2) SC3015C Product status link Internal .
The STRHMF16N20 is a N-channel Power MOSFET able to operate in extreme environment conditions and severe radiation exposure.

STRHMF16N20 Features

* VDS 200 V ID 16 A RDS(on) typ. 70 mΩ Qg 52 nC
* ESCC qualified as per detail specification 5205/034
* 100 krad total ionizing dose guaranteed
* Wide RBSOA under heavy-ions radiation exposure
* Low RDS(on)
* Low total gate charge
* Fast switc

STRHMF16N20 Applications

* and suitable for power conversion, motor control and power switch circuits. Device summary Part number STRHMF16N20S1 STRHMF16N20SG STRHMF16N20ST Product summary Quality level Package Engineering model Flight model SMD.5 Flight model Note: See Table 8 for ordering information. Lead finish

📥 Download Datasheet

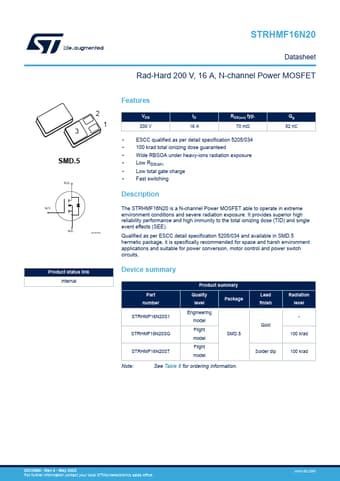

Preview of STRHMF16N20 PDF
datasheet Preview Page 2 datasheet Preview Page 3
