STRF0000 CONTACTLESS READER CHIP SET

STRF0000 Description

STRF0000 CONTACTLESS READER CHIP SET DATA BRIEFING FUNCTION: ANALOG FRONT END FOR CONTACTLESS SMARTCARD READER s GENERAL .
This is an analog front end dedicated to contactless Smartcards. This interface complies with ISO 14443-2 Type B: powering, data t.

STRF0000 Features

* Supply voltage: from 5 V to 15 V
* Modulation: 10% ASK
* Data transfer to card: up to 424 KBit/second
* Data transfer to reader: up to 424 KBit/second
* DC subcarrier output level
* Quartz oscillator 13.56 MHz ± 100 ppm FUNCTION: DECODER AND FRAME F

📥 Download Datasheet

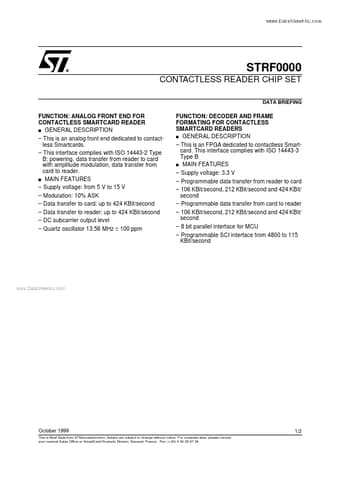

Preview of STRF0000 PDF
datasheet Preview Page 2
