STR1P2UH7 Datasheet - STMicroelectronics

STR1P2UH7, P-CHANNEL POWER MOSFET

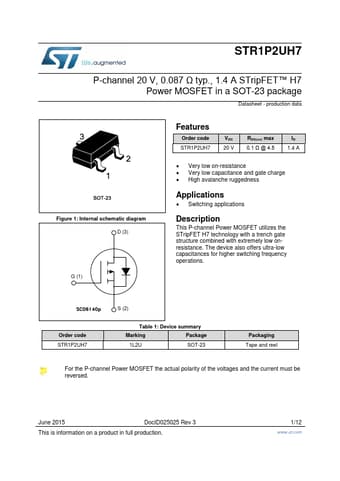

STR1P2UH7 P-channel 20 V, 0.087 Ω typ., 1.4 A STripFET™ H7 Power MOSFET in a SOT-23 package Datasheet - production data Figure 1: Internal schematic.
This P-channel Power MOSFET utilizes the STripFET H7 technology with a trench gate structure combined with extremely low onresistance.

Datasheet Preview Page 1

STR1P2UH7-STMicroelectronics.pdf

STR1P2UH7 Datasheet Preview — Preview of STR1P2UH7 PDF

STR1P2UH7 Datasheet Preview Page 2

STR1P2UH7 Datasheet Preview Page 3

Datasheet Details

Part number:

STR1P2UH7

Manufacturer:

STMicroelectronics ↗

File Size:

497.66 KB

Description:

P-CHANNEL POWER MOSFET

Features

* Order code STR1P2UH7 VDS 20 V RDS(on) max 0.1 Ω @ 4.5 ID 1.4 A
* Very low on-resistance
* Very low capacitance and gate charge
