STPS41L45CG, LOW DROP POWER SCHOTTKY RECTIFIER

® STPS41L45CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 45 V 150 °C 0.47 V A1 K .
Dual center tab Schottky rectifier suited for 5V output in off line AC/DC power supplies.

STPS41L45CG_STMicroelectronics.pdf

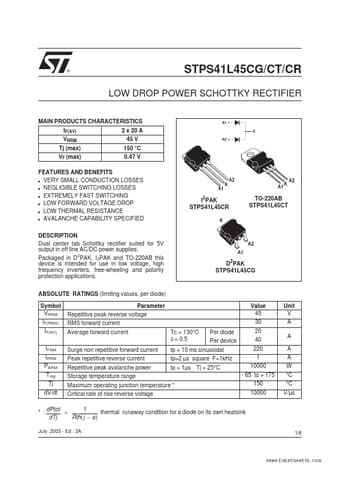

STPS41L45CG Datasheet Preview — Preview of STPS41L45CG PDF

Datasheet Details

Part number:

STPS41L45CG

Manufacturer:

STMicroelectronics ↗

File Size:

75.35 KB

Description:

LOW DROP POWER SCHOTTKY RECTIFIER

Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt Parameter Repetitive peak reverse voltage RMS forward current Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power Storage te
