STPS41H100CG, 100V power Schottky rectifier

STPS41H100C Datasheet 100 V power Schottky rectifier A1 K A2 K K A2 A1 K TO-220AB K A2 A1 K I2PAK K A2 A1 D2PAK A2 A1 Product status link STP.
This dual center tab Schottky rectifier is suited for switch mode power supply and high frequency DC to DC converters.

STPS41H100CG_STMicroelectronics.pdf

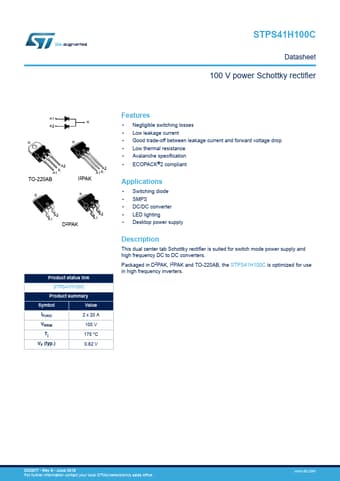

STPS41H100CG Datasheet Preview — Preview of STPS41H100CG PDF

Datasheet Details

Part number:

STPS41H100CG

Manufacturer:

STMicroelectronics ↗

File Size:

328.76 KB

Description:

100V power Schottky rectifier

Features

* Negligible switching losses
* Low leakage current
* Good trade-off between leakage current and forward voltage drop
* Low thermal resistance
* Avalanche specification

Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting
