STPS4030CR, STPS4030CG, (STPS4030Cx) LOW DROP POWER SCHOTTKY RECTIFIER

® STPS4030CT/CG/CR LOW DROP POWER SCHOTTKY RECTIFIER MAJOR PRODUCTS CHARACTERISTICS A1 IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 30 V 150°C 0.40 V K .
Dual Schottky rectifier suited for switch Mode Power Supply and high frequency DC to DC converters.

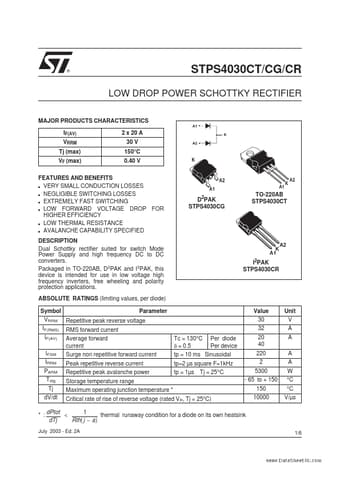

STPS4030CG_STMicroelectronics.pdf

STPS4030CR Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS4030CR, STPS4030CG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS4030CR, STPS4030CG

Manufacturer:

STMicroelectronics ↗

File Size:

74.44 KB

Description:

(STPS4030Cx) LOW DROP POWER SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: STPS4030CR, STPS4030CG.
Please refer to the document for exact specifications by model.

Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter VRRM Repetitive peak reverse voltage IF(RMS) RMS forward current IF(AV) IFSM IRRM PARM Tstg Tj dV/dt
* : Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power St
