STPS40170CW, STPS40170C 170V power Schottky rectifier

STPS40170CW Description

STPS40170C Datasheet 170 V power Schottky rectifier A1 K A2 TO-220AB A1 K A2 TO-247 K A2 K A1 .
This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

STPS40170CW Features

* High junction temperature capability
* Low leakage current
* High voltage capabilities
* Good trade-off between leakage current and forward voltage drop
* Low thermal resistance
* High frequency operation
* Avalanche specification
* E

STPS40170CW Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS40170CW, STPS40170C. Please refer to the document for exact specifications by model.

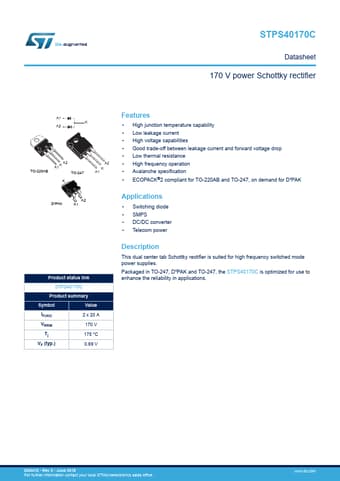

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS40170CW, STPS40170C
Manufacturer
STMicroelectronics ↗
File Size
575.43 KB
Datasheet
STPS40170C_STMicroelectronics.pdf
Description
170V power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS40170CW, STPS40170C.
Please refer to the document for exact specifications by model.
