STPS20200CFP, STPS20200C Power Schottky diode

STPS20200CFP Description

STPS20200C Diode 1 A1 Diode 2 A2 K A2 A1 K TO-220AB STPS20200CT K A2 A1 D2PAK STPS20200CG-TR K A2 K A1 TO-220FPAB STPS20200CFP K A2 A1 K TO-220AB na.
This device is a dual center tap 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS20200CFP Features

* Low forward voltage drop
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* -40°C minimum operating Tj
* Insulated package: TO-220FPAB
* Insulating voltage: 2000 V DC

STPS20200CFP Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM Tj(max) VF(typ) 2 x 10 A 200 V 175 °C 0.64 V October 2013 This is information on a product in full production. DocID024382 Rev 2 1/15 www. st. com 15 Characteristics 1 Characteristics STPS20200C Table 2. Absolute ratings (limiting values

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20200CFP, STPS20200C. Please refer to the document for exact specifications by model.

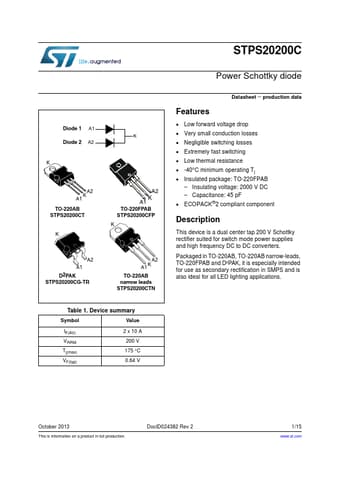

datasheet Preview Page 2 datasheet Preview Page 3
