STPS20150CG, STPS20150C High voltage power Schottky rectifier

STPS20150CG Description

STPS20150C Datasheet High voltage power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K A2 K A1 TO-220FPAB A2 A1 K I2PAK K K .
Dual center tap Schottky rectifier designed for high frequency switch mode power supplies.

STPS20150CG Features

* High junction temperature capability
* Good trade off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability specified
* Insulated package: TO-220FPAB
* Insulating voltage = 2000 VRMS sine
* ECOPACK®2 co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20150CG, STPS20150C. Please refer to the document for exact specifications by model.

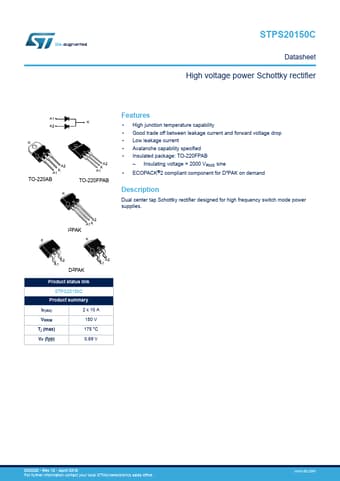

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20150CG, STPS20150C
Manufacturer
STMicroelectronics ↗
File Size
289.54 KB
Datasheet
STPS20150C_STMicroelectronics.pdf
Description
High voltage power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS20150CG, STPS20150C.
Please refer to the document for exact specifications by model.
