STPS10L40CSF power Schottky rectifier

STPS10L40CSF Description

STPS10L40CSF Datasheet 40 V, 2 x 5 A low forward voltage power Schottky rectifier .
This 2 x 5 A, 40 V Schottky diode is suitable for power supply, especially for lighting power, as well as auxiliary power in server or telecom SMPS.

STPS10L40CSF Features

* Low profile design
* 1.1mm package typical height
* Wettable flanks for automatic visual inspection
* Very low conduction losses
* High forward surge current capability

STPS10L40CSF Applications

* DC/DC converter
* Stand by power
* Oring

📥 Download Datasheet

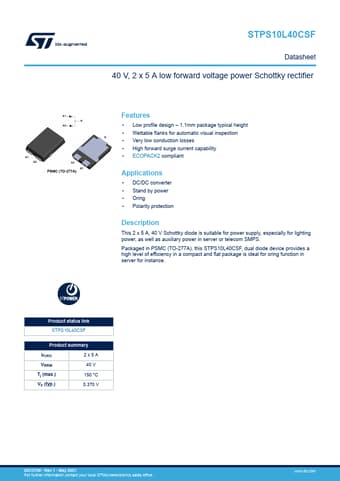

Preview of STPS10L40CSF PDF
datasheet Preview Page 2 datasheet Preview Page 3
