STPS10L25 - Low drop power Schottky rectifier

Description

Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters.

This device is especially intended for use as a rectifier at the secondary of 3.3 V SMPS units.

Features

  • Very low forward voltage drop for less power dissipation.
  • Optimized conduction / reverse losses tradeoff which means the highest efficiency in the.

📥 Download Datasheet

Datasheet preview – STPS10L25

Datasheet Details

Part number STPS10L25
Manufacturer STMicroelectronics
File Size 366.08 KB
Description Low drop power Schottky rectifier
Datasheet download datasheet STPS10L25 Datasheet
Additional preview pages of the STPS10L25 datasheet.

📁 Similar Datasheet

  • STPS1017CB - Schottky Barrier Rectifier (INCHANGE)
  • STPS1020 - 10A SUPER-FAST RECTIFIER (DIODES)
  • STPS1045B - POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS1045B - SCHOTTKY RECTIFIER (International Rectifier)
  • STPS1045BPBF - SCHOTTKY RECTIFIER (International Rectifier)
  • STPS1045HR - Schottky rectifier (ST Microelectronics)
  • STPS1060 - 10A SUPER-FAST RECTIFIER (DIODES)
  • STPS1545CF - (STPS1545CT/CF/CG/CFP/CR) POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS1545CFP - (STPS1545CT/CF/CG/CFP/CR) POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS15H100CB - High voltage power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

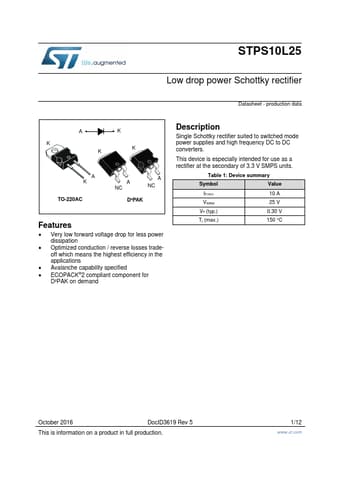

STPS10L25 Low drop power Schottky rectifier Datasheet - production data AK K KK A K TO-220AC A NC A NC D²PAK Features  Very low forward voltage drop for less power dissipation  Optimized conduction / reverse losses tradeoff which means the highest efficiency in the applications  Avalanche capability specified  ECOPACK®2 compliant component for D²PAK on demand Description Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters. This device is especially intended for use as a rectifier at the secondary of 3.3 V SMPS units. Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 10 A 25 V 0.30 V 150 °C October 2016 DocID3619 Rev 5 This is information on a product in full production. 1/12 www.st.
