STPLED656 - N-channel Power MOSFET

STMicroelectronics

Datasheet Details

Part number	STPLED656
Manufacturer	STMicroelectronics ↗
File Size	871.16 KB
Description	N-channel Power MOSFET
Datasheet	STPLED656-STMicroelectronics.pdf

These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies.

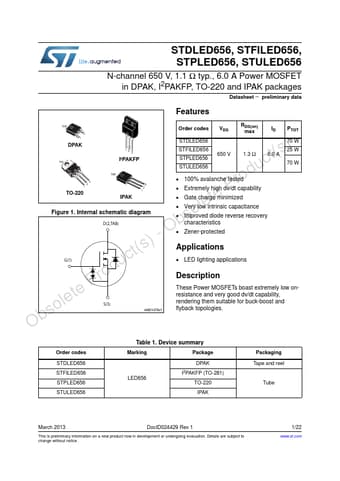

TAB Order codes VDS RDS(on) max ID PTOT 3 1 DPAK t(s)TAB roduc3 2 1 te PTO-220 123 I²PAKFP TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) ct(s) - OG(1) lete ProduS(3) Obso AM01476v1 STDLED656 STFILED656 STPLED656 STULED656 650 V 1.3 Ω 6.0 A 70 W 25 W 70 W.
100% avalanche tested.
Extremely high dv/dt capability.
Gate charge minimized.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
