STP4NC80ZFP, STP4NC80Z Datasheet - STMicroelectronics

STP4NC80ZFP, STP4NC80Z, N-CHANNEL MOSFET

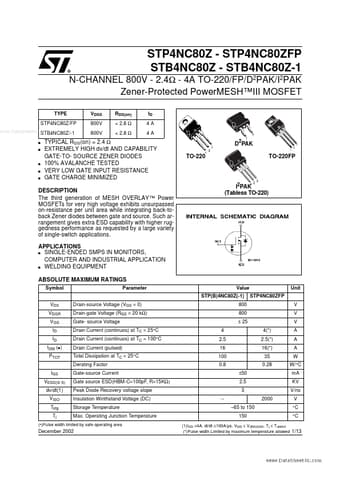

STP4NC80Z - STP4NC80ZFP STB4NC80Z - STB4NC80Z-1 N-CHANNEL 800V - 2.4Ω - 4A TO-220/FP/D2PAK/I2PAK Zener-Protected PowerMESH™III MOSFET TYPE STP4NC80Z/F.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toba.

STP4NC80Z_STMicroelectronics.pdf

STP4NC80ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP4NC80ZFP, STP4NC80Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP4NC80ZFP, STP4NC80Z

Manufacturer:

STMicroelectronics ↗

File Size:

445.83 KB

Description:

N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP4NC80ZFP, STP4NC80Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* APPLICATIONS SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT s 1 I2PAK (Tabless TO-220) 23 ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT IGS VESD(G-S) dv/dt(1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS
