STP4NC50 - N-CHANNEL MOSFET

STP4NC50 Description

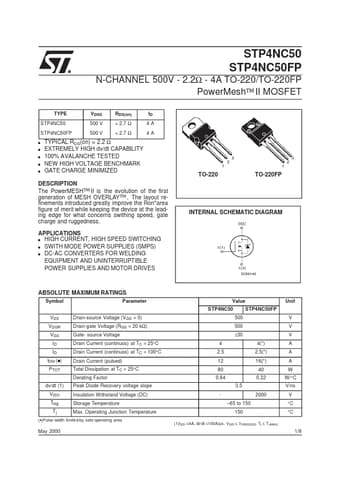

N-CHANNEL 500V - 2.2Ω - 4A TO-220/TO-220FP PowerMesh™ II MOSFET TYPE STP4NC50 STP4NC50FP s s s s s STP4NC50 STP4NC50FP VDSS 500 V 500 V RDS(on) < 2.
The PowerMESH™ II is the evolution of the first generation of MESH OVERLAY™ . area figur.

STP4NC50 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVES INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter Drain-sou
