STP3LN80K5 - N-channel Power MOSFET

STP3LN80K5 Description

STP3LN80K5, STU3LN80K5 N-channel 800 V, 2.75 Ω typ., 2 A MDmesh™ K5 Power MOSFET in TO-220 and IPAK packages Datasheet - production data TAB TAB T.
These very high voltage N-channel Power MOSFET are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP3LN80K5 Features

* Order code STP3LN80K5 STU3LN80K5 V DS 800 V RDS(on) max 3.25 Ω ID 2A
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested

📥 Download Datasheet

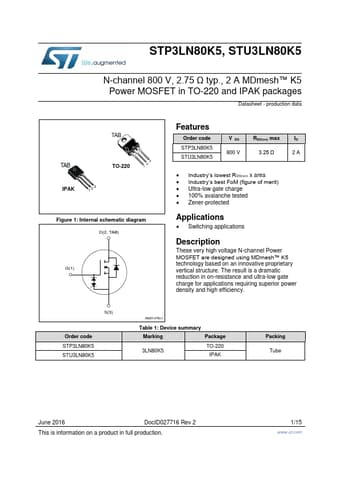

Preview of STP3LN80K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
