STP3HNK90Z - N-channel Power MOSFET

STMicroelectronics

The STP3HNK90Z by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

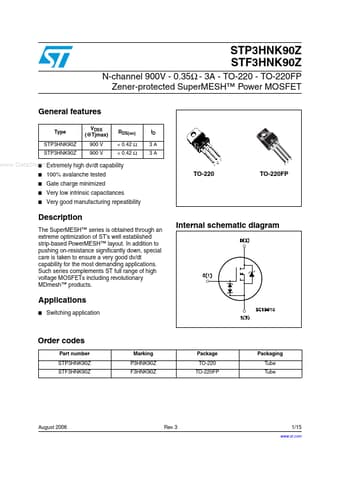

STP3HNK90Z N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STP3HNK90Z** N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STP3HNK90Z
Manufacturer	STMicroelectronics
File Size	395.95 KB
Description	N-channel Power MOSFET
Datasheet	STP3HNK90Z_STMicroelectronics.pdf
Additional preview pages of the STP3HNK90Z datasheet.

STP3HNK90Z Product details

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. Switching application Order codes Part number STP3HNK90Z STF3HNK90Z M

Features

Type STP3HNK90Z STP3HNK90Z VDSS (@Tjmax) 900 V 900 V RDS(on) < 0.42 Ω < 0.42 Ω ID 3A 3A 3 1 2 www. DataSheet4U. com.
Extremely high dv/dt capability.
100% avalanche tested Gate charge minimized Very low intrinsic capacitances Very good manufacturing repeatibility TO-220 TO-220FP.
