STP35N65M5, N-channel Power MOSFET

STB35N65M5, STF35N65M5, STI35N65M5 STP35N65M5, STW35N65M5 N-channel 650 V, 0.085 Ω, 27 A, MDmesh™ V Power MOSFET in D²PAK, TO-220FP, I²PAK, TO-220, TO.
' These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMi.

STP35N65M5-STMicroelectronics.pdf

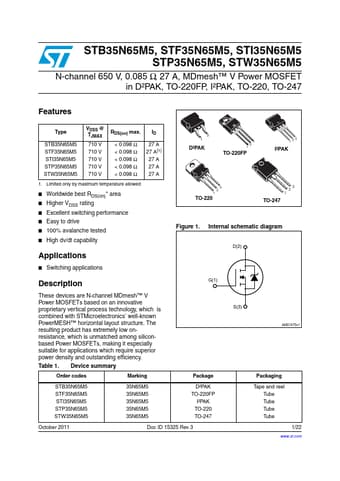

STP35N65M5 Datasheet Preview — Preview of STP35N65M5 PDF

Datasheet Details

Part number:

STP35N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

703.09 KB

Description:

N-channel Power MOSFET

Features

* Type STB35N65M5 STF35N65M5 STI35N65M5 STP35N65M5 STW35N65M5 VDSS @ TJMAX 710 V 710 V 710 V 710 V 710 V RDS(on) max. ID < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω 27 A 27 A(1) 27 A 27 A 27 A 1. Limited only by maximum temperature allowed
* Worldwide best RDS(on)
* area
* High

Applications

* 3 1 D²PAK 3 2 1 TO-220FP 123 I²PAK 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram $
