STNRG388A Digital controller

STNRG388A Description

STNRG388A Digital controller for power conversion applications with up to 6 programmable PWM generators, 96 MHz PLL Datasheet - production data Feat.

STNRG388A Features

* Up to 6 programmable PWM generators (SMED - “State Machine Event Driven”)
* 10 ns event detection and reaction
* Max.1.3 ns PWM resolution
* Single, coupled and two coupled operational modes
* Up to 3 internal/external events per SMED
* 4 analog comparators

📥 Download Datasheet

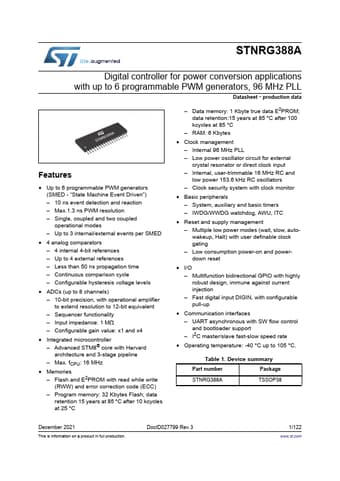

Preview of STNRG388A PDF
datasheet Preview Page 2 datasheet Preview Page 3
