STNRGPF02, STNRGPF12 2-channel interleaved PFC driver

STNRGPF02 Description

STNRGPF02, STNRGPF12 Datasheet 2-channel interleaved PFC driver with embedded digital inrush current limiter function Product status link STNRGPF02 S.
The STNRGPF02/12 embed the Inrush Current Limiter function.

STNRGPF02 Features

* Embedded digital inrush current limiter function
* Interleaved PFC digital controller
* Two interleaved channels PFC
* Continuous conduction mode
* Fixed frequency operation
* Average current mode control
* Mixed signal architecture

STNRGPF02 Applications

* Welding, air conditioner
* Industrial motors
* UPS, chargers, high power systems
* Customizable firmware
* Configuration via eDesign suite
* Embedded memory
* Program memory: 32 Kbytes flash
* Data retention 15 years at 85 °C after 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STNRGPF02, STNRGPF12. Please refer to the document for exact specifications by model.

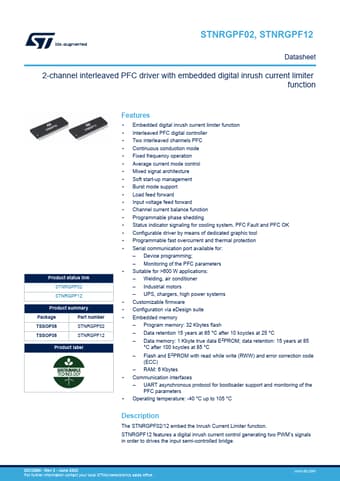

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STNRGPF02, STNRGPF12
Manufacturer
STMicroelectronics ↗
File Size
0.98 MB
Datasheet
STNRGPF12-STMicroelectronics.pdf
Description
2-channel interleaved PFC driver
Note
This datasheet PDF includes multiple part numbers: STNRGPF02, STNRGPF12.
Please refer to the document for exact specifications by model.
