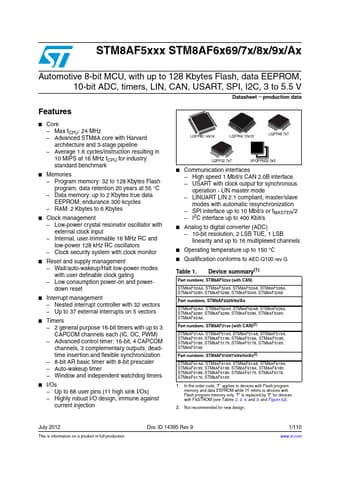

Description
.
.
11 Product overview
.
.
Features
- Core.
- Max fCPU: 24 MHz.
- Advanced STM8A core with Harvard architecture and 3-stage pipeline.
- Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark
LQFP48 7x7
LQFP80 14x14
LQFP64 10x10 LQFP32 7x7
Memories.
- Communication interfaces.
- Program memory: 48 to 128 Kbytes Flash; data retention 20 years at 55 °C after 1 kcycle.
- Data memory: 1.5 to 2 Kbytes true data EEPROM; endurance 300 kcycles.
- RAM: 3 to 6 Kbytes.
