STM8AF6288, STM8AF5268 - Automotive 8-bit MCU

STMicroelectronics

📥 Download Datasheet

STM8AF6288 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM8AF6288, STM8AF5268. Please refer to the document for exact specifications by model.

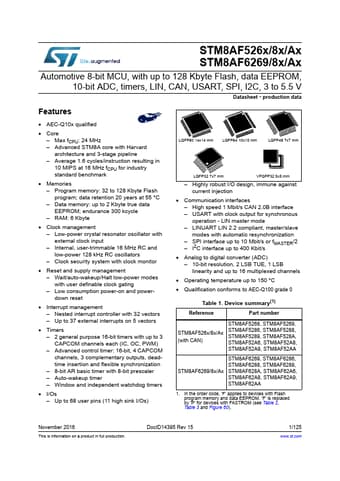

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STM8AF6288, STM8AF5268
Manufacturer	STMicroelectronics ↗
File Size	1.04 MB
Description	Automotive 8-bit MCU
Datasheet	STM8AF5268-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM8AF6288, STM8AF5268. Please refer to the document for exact specifications by model.

STM8AF6288 Product details

Description

. . 12 5 Product overview . .

Features

AEC-Q10x qualified.
Core.
Max fCPU: 24 MHz.
Advanced STM8A core with Harvard architecture and 3-stage pipeline.
Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark.
Memories.
Program memory: 32 to 128 Kbyte Flash program; data retention 20 years at 55 °C.
Data memory: up to 2 Kbyte true data EEPROM; endurance 300 kcycle.
RAM: 6 Kbyte.
Clock management.
