STM32L152VB-A Datasheet PDF (Ultra-low-power 32-bit MCU) | Download STMicroelectronics STM32L152VB-A

STM32L152VB-A - Ultra-low-power 32-bit MCU

This page provides the datasheet information for the STM32L152VB-A, a member of the STM32L151CB-A Ultra-low-power 32-bit MCU family.

Features

Ultra-low-power platform.
1.65 V to 3.6 V power supply.
-40°C to 105°C temperature range.
0.28 µA Standby mode (3 wakeup pins).
1.11 µA Standby mode + RTC.
0.44 µA Stop mode (16 wakeup lines).
1.38 µA Stop mode + RTC.
10.9 µA Low-power Run mode.
185 µA/MHz Run mode.
10 nA ultra-low I/O leakage.
< 8 µs wakeup time.
Core: ARM® Cortex®-M3 32-bit CPU.
From 32 kHz up to 32 MHz max.

Datasheet Details

Part number	STM32L152VB-A
Manufacturer	STMicroelectronics
File Size	1.69 MB
Description	Ultra-low-power 32-bit MCU
Datasheet	STM32L152VB-A Datasheet
Additional preview pages of the STM32L152VB-A datasheet.

📁 Similar Datasheet

STM32F103ZE - ARM-CM3 Board User Manual (EMBEST)

STM301N - N-Channel MOSFET (SamHop Microelectronics)

STM-1116 - 800 - 1000 MHz High Linearity Active Transmit Mixer (ETC)

STM-2016 - 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer (Stanford Microdevices)

STM-3116 - High Linearity Active Transmit Mixer (Sirenza Microdevices)

STM-S3 - STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES (Connor-Winfield)

STM-S3E - Stratum 3E Timing Module (Connor-Winfield)

STM025QVT-001 - LCD Module (Space Display)

STM1001 - Reset Circuit (ST Microelectronics)

STM101N - N-Channel MOSFET (SamHop Microelectronics)

Full PDF Text Transcription

Click to expand full text

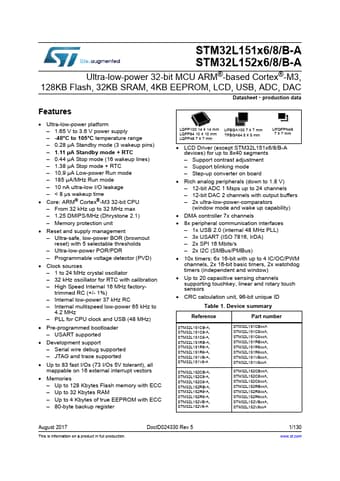

STM32L151x6/8/B-A STM32L152x6/8/B-A Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 128KB Flash, 32KB SRAM, 4KB EEPROM, LCD, USB, ADC, DAC Datasheet - production data Features • Ultra-low-power platform – 1.65 V to 3.6 V power supply – -40°C to 105°C temperature range – 0.28 µA Standby mode (3 wakeup pins) – 1.11 µA Standby mode + RTC – 0.44 µA Stop mode (16 wakeup lines) – 1.38 µA Stop mode + RTC – 10.9 µA Low-power Run mode – 185 µA/MHz Run mode – 10 nA ultra-low I/O leakage – < 8 µs wakeup time • Core: ARM® Cortex®-M3 32-bit CPU – From 32 kHz up to 32 MHz max – 1.25 DMIPS/MHz (Dhrystone 2.
