STM32L100C6 - Ultra-low-power 32-bit MCU

Description

.

.

.

.

.

.

.11 2.2.1 Perfo

Features

  • Ultra-low-power platform.
  • 1.8 V to 3.6 V power supply.
  • -40°C to 85°C temperature range.
  • 0.3 µA Standby mode (2 wakeup pins).
  • 0.9 µA Standby mode + RTC.
  • 0.57 µA Stop mode (16 wakeup lines).
  • 1.2 µA Stop mode + RTC.
  • 9 µA Low-power run mode.
  • 214 µA/MHz Run mode.
  • 10 nA ultra-low I/O leakage.
  • < 8 µs wakeup time.
  • Core: 32-bit ARM® Cortex®-M3 CPU.
  • From 32 kHz up to 32 MHz max.

📥 Download Datasheet

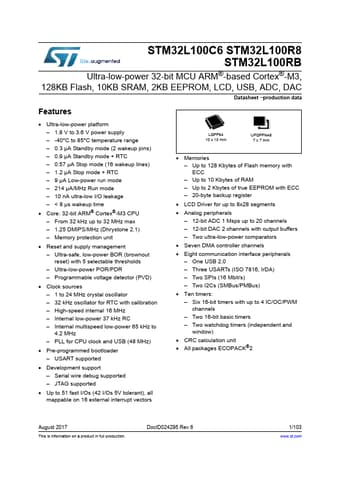

Datasheet preview – STM32L100C6

Datasheet Details

Part number STM32L100C6
Manufacturer STMicroelectronics
File Size 1.63 MB
Description Ultra-low-power 32-bit MCU
Datasheet download datasheet STM32L100C6 Datasheet
Additional preview pages of the STM32L100C6 datasheet.

📁 Similar Datasheet

  • STM32F103ZE - ARM-CM3 Board User Manual (EMBEST)
  • STM301N - N-Channel MOSFET (SamHop Microelectronics)
  • STM-1116 - 800 - 1000 MHz High Linearity Active Transmit Mixer (ETC)
  • STM-2016 - 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer (Stanford Microdevices)
  • STM-3116 - High Linearity Active Transmit Mixer (Sirenza Microdevices)
  • STM-S3 - STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES (Connor-Winfield)
  • STM-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STM025QVT-001 - LCD Module (Space Display)
  • STM1001 - Reset Circuit (ST Microelectronics)
  • STM101N - N-Channel MOSFET (SamHop Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STM32L100C6 STM32L100R8 STM32L100RB Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 128KB Flash, 10KB SRAM, 2KB EEPROM, LCD, USB, ADC, DAC Datasheet −production data Features • Ultra-low-power platform – 1.8 V to 3.6 V power supply – -40°C to 85°C temperature range – 0.3 µA Standby mode (2 wakeup pins) – 0.9 µA Standby mode + RTC – 0.57 µA Stop mode (16 wakeup lines) – 1.2 µA Stop mode + RTC – 9 µA Low-power run mode – 214 µA/MHz Run mode – 10 nA ultra-low I/O leakage – < 8 µs wakeup time • Core: 32-bit ARM® Cortex®-M3 CPU – From 32 kHz up to 32 MHz max – 1.25 DMIPS/MHz (Dhrystone 2.
