STM32H523VE, STM32H523CC 32-bit MCU

STM32H523VE Description

STM32H523xx Arm® Cortex®-M33 32-bit MCU+TrustZone® + FPU, 375 DMIPS 250 MHz, 512-Kbyte flash, 272-Kbyte RAM Datasheet - production data .

STM32H523VE Features

* UFBGA Includes ST state-of-the-art patented technology Core
* Arm® Cortex®-M33 CPU with TrustZone®, FPU, frequency up to 250 MHz, MPU, 375 DMIPS (Dhrystone 2.1) LQFP48 (7 x 7 mm) LQFP64 (10 x 10 mm) LQFP100 14 x 14 mm) LQFP144 (20 x 20 mm) UFBGA100 (7 x 7 mm) UFBGA144 (10 x 10 mm) ART Ac

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32H523VE, STM32H523CC. Please refer to the document for exact specifications by model.

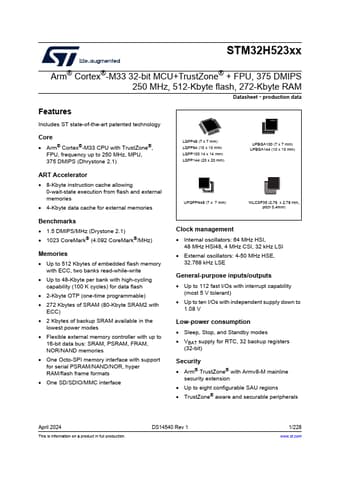

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32H523VE, STM32H523CC
Manufacturer
STMicroelectronics ↗
File Size
2.63 MB
Datasheet
STM32H523CC-STMicroelectronics.pdf
Description
32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32H523VE, STM32H523CC.
Please refer to the document for exact specifications by model.
