STL4P2UH7 - P-CHANNEL POWER MOSFET

STL4P2UH7 Description

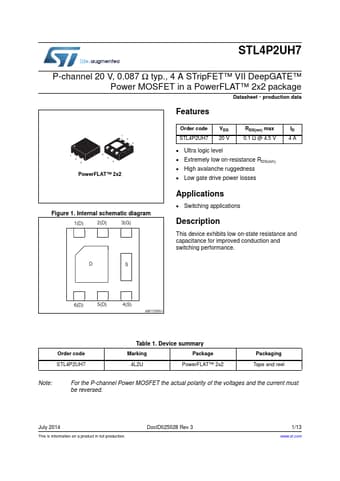

STL4P2UH7 P-channel 20 V, 0.087 Ω typ., 4 A STripFET™ VII DeepGATE™ Power MOSFET in a PowerFLAT™ 2x2 package Datasheet - production data .
This device exhibits low on-state resistance and capacitance for improved conduction and switching performance.

STL4P2UH7 Features

* 1 2 3 1 2 3 6 5 4 PowerFLAT™ 2x2 Figure 1. Internal schematic diagram 1(D) 2(D) 3(G) Order code STL4P2UH7 VDS 20 V RDS(on) max 0.1 Ω @ 4.5 V
* Ultra logic level
* Extremely low on-resistance RDS(on)
* High avalanche ruggedness
* Low gate drive power losses I
