STL42P4LLF6 P-CHANNEL POWER MOSFET

STL42P4LLF6 Description

STL42P4LLF6 Datasheet P-channel 40 V, 15.5 mΩ typ., 42 A STripFET F6 DeepGATE Power MOSFET in a PowerFLAT 5x6 package PowerFLAT 5x6 D(5, 6, 7, 8) G(4.
This device is a P-channel Power MOSFET developed using the STripFET F6 technology, with a new trench gate structure.

STL42P4LLF6 Features

* Order code VDS STL42P4LLF6 40 V
* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness

📥 Download Datasheet

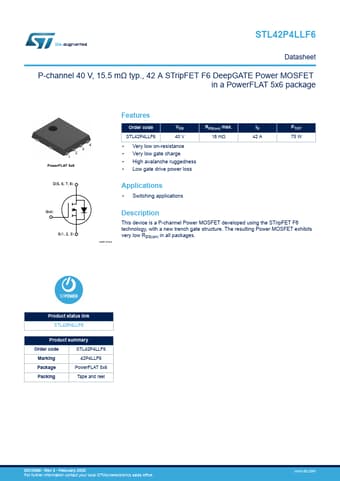

Preview of STL42P4LLF6 PDF
datasheet Preview Page 2 datasheet Preview Page 3
