STL10N65M2 - N-channel Power MOSFET

STL10N65M2 Description

STL10N65M2 N-channel 650 V, 0.85 Ω typ., 4.5 A MDmesh M2 Power MOSFET in a PowerFLAT™ 5x6 HV package Datasheet - production data .
This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

STL10N65M2 Features

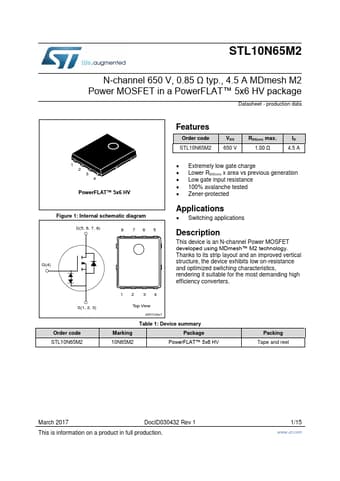

* Order code STL10N65M2 VDS 650 V RDS(on) max. 1.00 Ω ID 4.5 A 1 2 3 4 PowerFLAT™ 5x6 HV Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View
* Extremely low gate charge
* Lower RDS(on) x area vs previous generation
* Low gate input resistance

📥 Download Datasheet

Preview of STL10N65M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
