STKM2000 2u/2 POLY/2 METAL BiCMOS MIXED ANALOG-DIGITAL STANDARD CELLS

With the STKM2000 series, SGS-THOMSON Microelectronics introduces the “state of the art” product for analog signal processing, chain from sensor to actuator. The introduction of new concepts (cells library and CAD) opens the design of analog functions and mixed analog and digital circuits with a saf.

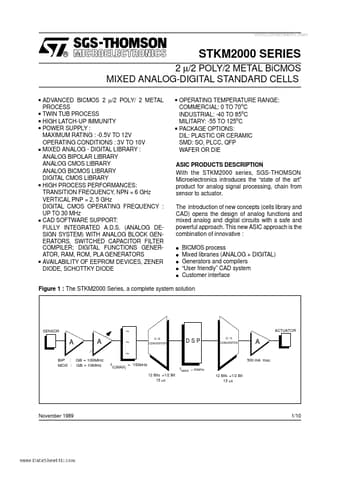

www.DataSheet4U.com ® STKM2000 SERIES 2 µ/2 POLY/2 METAL BiCMOS MIXED ANALOG-DIGITAL STANDARD CELLS s s s s s s s s ADVANCED BICMOS 2 µ/2 POLY/ 2 METAL PROCESS TWIN TUB PROCESS HIGH LATCH-UP IMMUNITY POWER SUPPLY : MAXIMUM RATING : -0.5V TO 12V OPERATING CONDITIONS : 3V TO 10V MIXED ANALOG - DIGITAL LIBRARY : ANALOG BIPOLAR LIBRARY ANALOG CMOS LIBRARY ANALOG BICMOS LIBRARY DIGITAL CMOS LIBRARY HIGH PROCESS PERFORMANCES: TRANSITION FREQUENCY, NPN = 6 GHz VERTICAL PNP = 2, 5 GHz DIGITAL C.
