STHV748 2A high-speed pulser

STHV748 Description

STHV748 5-level, ±90 V, 2 A high-speed pulser with four independent channels Preliminary data .
This monolithic, high-voltage, high-speed pulser generator features four independent channels.

STHV748 Features

* High-density ultrasound transmitter 0 to ±90 V output voltage Up to 20 MHz operating frequency Low-power, high-voltage drivers 2 independently supplied half bridges for each channel in pulse wave (PW) mode
* 5-level output waveform
* ±2 A source and sin

STHV748 Applications

* Medical ultrasound imaging Pulse waveform generator NDT ultrasound transmission Piezoelectric transducers driver

📥 Download Datasheet

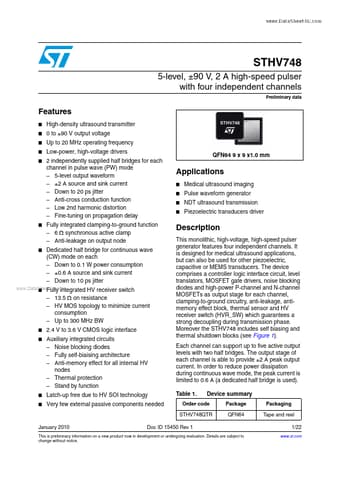

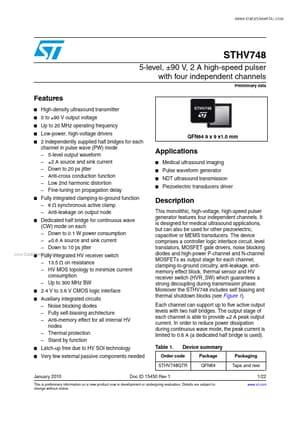

Preview of STHV748 PDF
datasheet Preview Page 2 datasheet Preview Page 3
