STH140N8F7-2 N-CHANNEL POWER MOSFET

STH140N8F7-2 Description

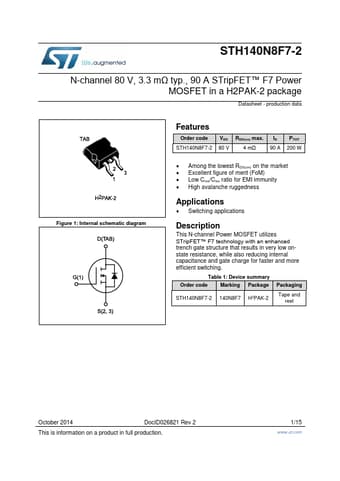

STH140N8F7-2 N-channel 80 V, 3.3 mΩ typ., 90 A STripFET™ F7 Power MOSFET in a H2PAK-2 package Datasheet - production data Figure 1: Internal schemat.
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STH140N8F7-2 Features

* Order code VDS RDS(on) max. ID PTOT STH140N8F7-2 80 V 4 mΩ 90 A 200 W
* Among the lowest RDS(on) on the market
* Excellent figure of merit (FoM)
* Low Crss/Ciss ratio for EMI immunity
